BSch3V manual

Attribute

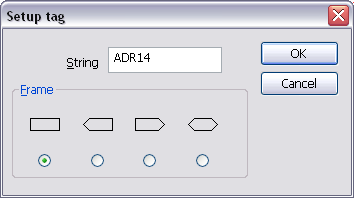

Tag

(1)Select a Markerline singly with the selector tool or the drag tool.
(2)[edit] ->[attribute]

Label

(1)Select a Markerline singly with the selector tool or the drag tool.
(2)[edit] ->[attribute]

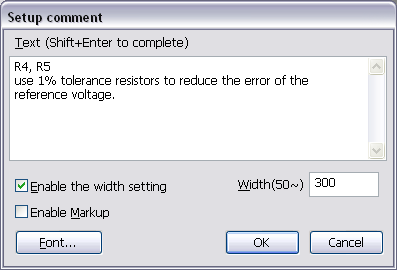

Comment

(1)Select a Markerline singly with the selector tool or the drag tool.
(2)[edit] ->[attribute]

• Enable Markup


  It enables using the tags like HTML.

  tag	function	example
  <B> ~ </B>	bold	<B>bold</B>
  <I> ~ </I>	italic	<I>italic</I>
  <O>~</O>	overbar	WR/<O>RD</O>
  <U> ~ </U>	underline	<U>underline</U>
  <SUP> ~ </SUP>	superscript	1.53x10<SUP>-3</SUP>
  <SUB> ~ </SUB>	subscript	V<SUB>BE</SUB>
  <FONT name> ~ </FONT>	font	<FONT Arial Black>ABCD</FONT>


  Special characters and strings


  entity	display character
  &lt;	<
  &gt;	>
  &amp;	&
  &DocPath;	Full path of the current document.
  &DocFileName;	File name of the current document without extension.
  &SaveTime;	Last save time and date of the current document.
  &SaveDate;	Last save date of the current document.
  &PrintTime;	It can be used in print footer text. (File->Print option) Print start time. If you print from the preview window, PrintTime will show preview start time.

  Please refer to the sample file, "MarkupCommentSample.CE3".

Decoline

(1)Select a Markerline singly with the selector tool or the drag tool.
(2)[edit] ->[attribute]


Related page
Place curve line

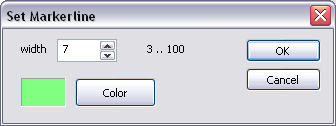

Markerline

(1)Select a Markerline singly with the selector tool or the drag tool.
(2)[edit] ->[attribute]

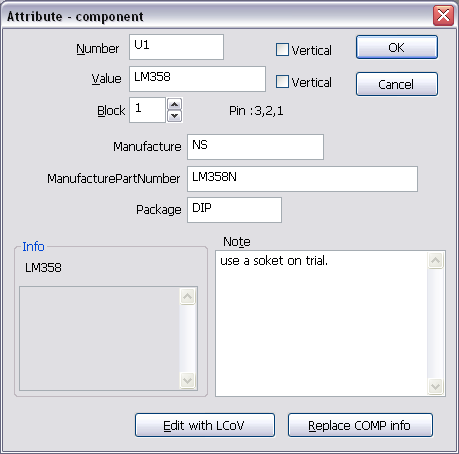

Component

(1)Select a Markerline singly with the selector tool or the drag tool.
(2)[edit] ->[attribute]

• Number
  It means component number. When you use only BSch3V, you can put anything in it, or you can leave it empty. If you use a partslist/netlist creating software, please set up numbers. In case you use the Suigyodo's netlist creating software, leave the component number of power line(ex. VCC/GND/VEE) EMPTY. Please read the appended document of the netlist creating software to know datails.
  I recommend you to use "alphabetic character string+numeric string" as component numbers.
  Use reference number utility to set up the numeric strings automatically.

• Value
  It means the name of the component. For example you could put capacitance for a capacitor.
  When you use only BSch3V, you can put anything in it, or you can leave it empty.
  If you use a partslist creating software PL3W, don't forget setting up the names. In case you use the netlist creating software NL3W, for power line bymbols (ex. VCC/GND/VEE), put the attribute of the power line(voltage for example).

• Block
  Some components contains multiple blocks of the same function in a package. For example, the standard logic IC 7400 or 7404. You can set up which block to use for such component with multiple blocks of the same function. When you change the value here, the pin number on the right side changes into the corresponding number of the block. For general registanace, capacitors, and transistors, you can't set up the value except 1.

• Manufacture, ManufacturePartname, Package, Note
  BSch3V doesn't draw these text on sheet.
    When you use PL3W, these information is output to the partslist.
    When you use NL3W, the package information is output to the netlist.
    If you intend to generate a netlist for VeeCAD, fill the "Package" with appropriate package name.

• Edit with LCoV
  If lcov.exe (the executable of the library editor LCoV) is in the same folder as bsch3v.exe, this button is valid. Click this button to edit the component's information (design, pin name and so on).
  Foe example, you can use it to edit the pinnames of one-chip microcomputer and multi-function pins of FPGA, too.
  **Editing the component information reflects only to the components which are being selected.**


• Replace COMP info
  Click this button, and the component select dialog will open. The dialog is used to place components. You can select components and replace their information in the dialog.
  **Editing the component information reflects only to the components which are being selected.**
