How to create a symbol with pattern - Place circle -

1. Open "Tool" menu and select "Circle".

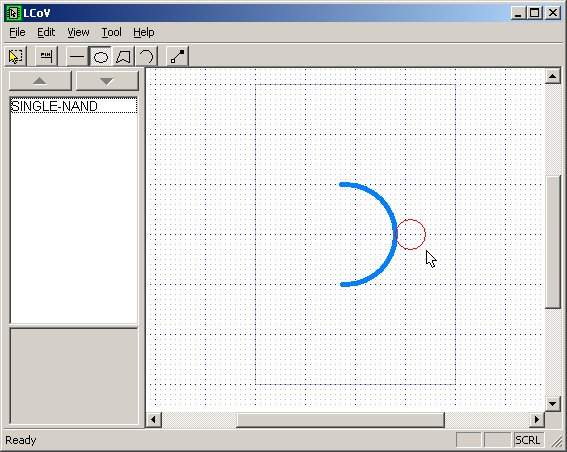

2. Click at the diagonal points of bounding rectangle

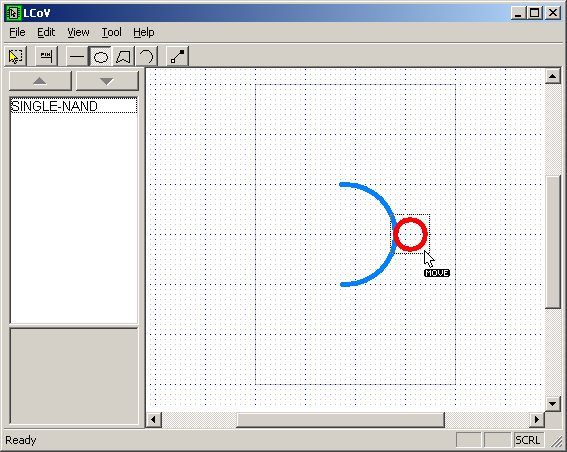

After the 2nd click, a display will change, as shown in the following.

Being displayed in red means that it is in a selection state.
In selection state, you can do the following operations.

• Change line width, line style, and fill or not. [Edit]->[Property]
• Copy and Paste. [Edit]->[Copy]
• Horizontal mirror and Rotate. [Edit]->[Mirror], [Edit]->[Rotate]
• In "Edit node mode"([Tool]->[Edit node mode]), you can change the shape of the circle(ellipse).
• If it is not in "Edit node mode", you can move it keeping shape.

Selection state is ended by pressing ESC key or Clicking at work area when cursor doesn't have "MOVE" mark.
