How to create a symbol with pattern - Place line -

1. Open "Tool" menu and select "Line".

2. Click at the starting point and end point.

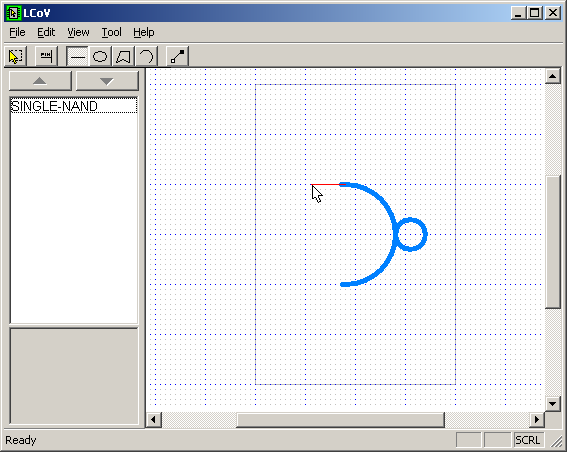

(1)Click starting point and move cursor.
To change the starting point, you can return to previous step by pressing ESC key.

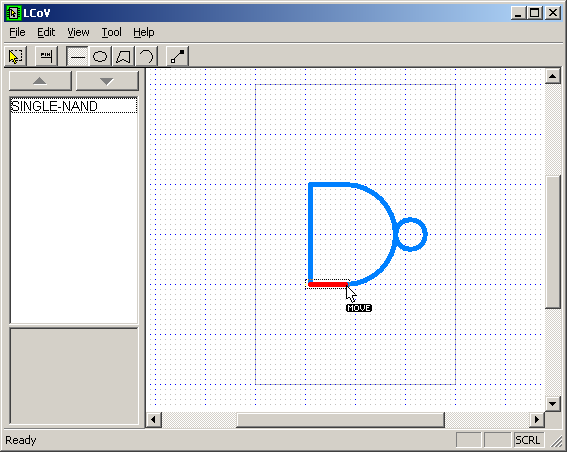

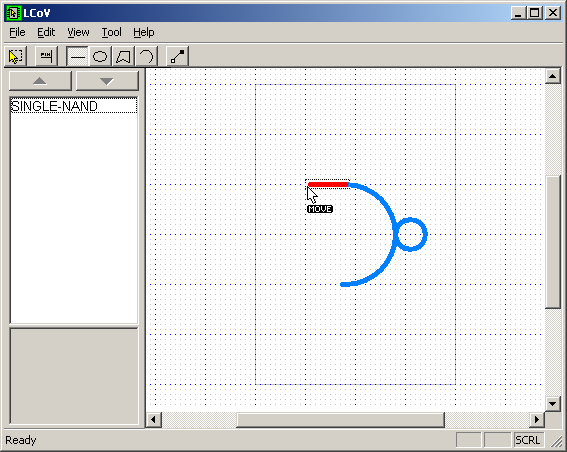

(2)Click at the end point.

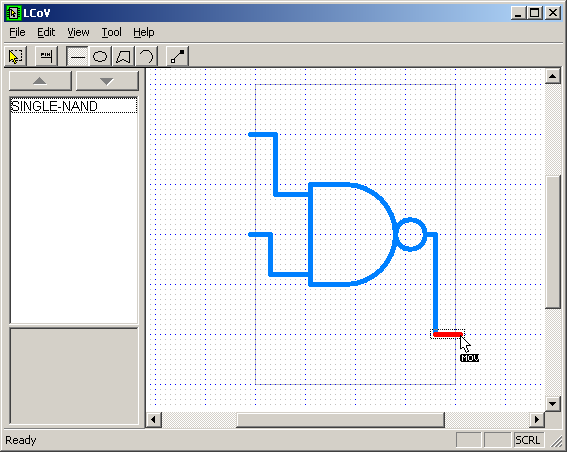

Being displayed in red means that it is in a selection state.
In selection state, you can do the following operations.

• Change line width and line style. [Edit]->[Property]
• Copy and Paste. [Edit]->[Copy]
• Horizontal mirror and Rotate. [Edit]->[Mirror], [Edit]->[Rotate]
• In "Edit node mode"([Tool]->[Edit node mode]), you can move the starting point and end point.
• If it is not in "Edit node mode", you can move it keeping length and angle.

Selection state is ended by pressing ESC key or Clicking at work area when cursor doesn't have "MOVE" mark.
