How to create a symbol with no pattern - Place pin -
1. Open "Tool" menu and select "Pin".

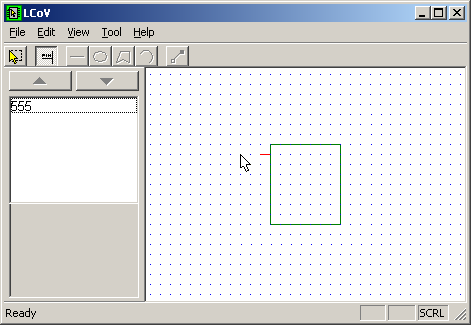

2. In Place-pin-mode, a temporary pin moves according to cursor.

3. Click where you want to place pin.

- You can't place pin where already pin exists.
- Being displayed in red means that the pin is in a selection state.
In selection state, you can do the following operations.

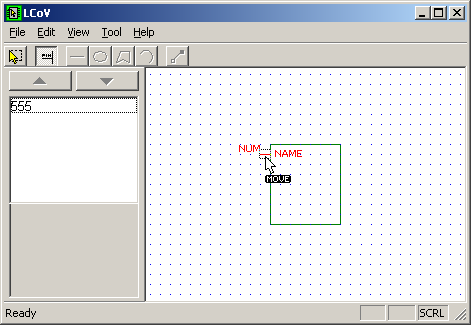

- Move
Move cursor to inside of dotted line rectangle.
"MOVE" mark appears under the cursor.
Press down the mouse button, and move.
- Set pin property. (Refer to next page)
