How to create a symbol with no pattern - Create a new component -

1. Open "Edit" menu and select "New component".

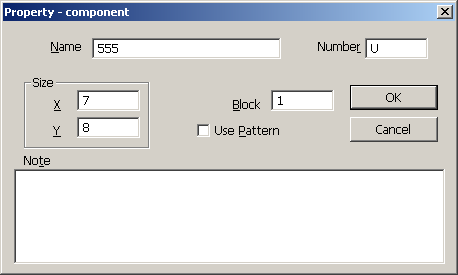

2. Set the name, number, size, block.

• "Number" is the prefix of the reference number. It is specified by the alphabetic character string.
• "Block" Fill in if a component has multiple same function blocks, fill in the number of blocks.


You can change these values later, by using command [Edit]->[Component property].
