How to create a symbol with no pattern - Pin property -

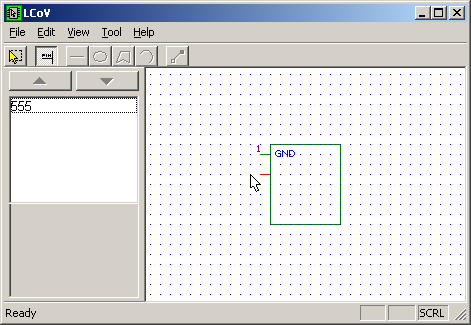

In selection state(a pin is displayed in red), you can set the property of the pin.

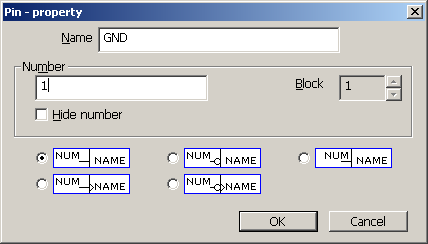

1. Open "Edit" menu and select "Property"

• Name: not necessary
• Number: It is necessary, if you use NL3W(Netlist utility).
• Hide number: If you check it, Number isn't displayed on BSch3V.
• Block: If the component has multiple block, you have to set pin number of all blocks.

2. Close propery dialog box by clicking "OK"

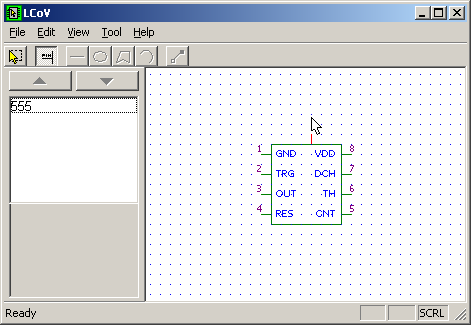

Selection state is ended by pressing ESC key or Clicking at work area when cursor doesn't have "MOVE" mark.

How to select pin again

1. Open "Tool" menu and select "Selector"
2. Click the line of pin.

Two or more pins cannot be chosen simultaneously.
