How to create a symbol with pattern - Create a new component -

1. Open the "Edit" menu and select the "New component".

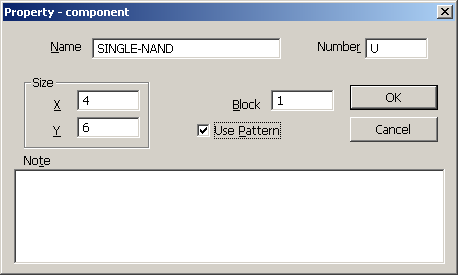

2. Set name and size, and check the "Use Pattern".

3. Click "OK"
