BSch3V Manual

Quick Attribute View

Components have undisplayed attributes such as "Manufacuture", "Package, etc.
Quick Attribute View function allows you to see such hidden attributes without using Component Attribute dialogbox.

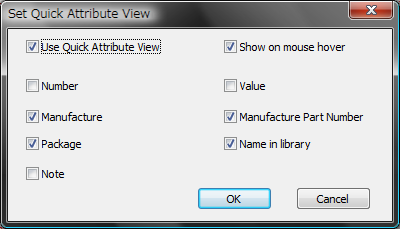

• Use Quick Attribute View
  Check on it to use this function.

• Show on mouse hover
  If check off it, you have to select component singly by using Selector-tool to show Quick Attribute View.
  If check on it, you can see Quick Attribute View when you place mouse cursor on the component.

• Other check boxes
  Select display items. You have to check on at least one item to use Quick Attribute View.

Quick Attribute View is closed when you move the mouse cursor.

You can change the back ground color of Quick Attribute View with [Setup]-[Color]
You can change the font of Quick Attribute View with [Setup]-[Font]

About abbreviation
Quick Attribute View uses abbreviations to reduce the area.

abbreviation	meaning		abbreviation	meaning
Num	Number		Val	Value
Mfr	Manufacture		MfrPn	ManufacturePartNumber
Pkg	Package		NameInLib	Name in Libraly
Note	Note
