BSch3V Manual

Color setting

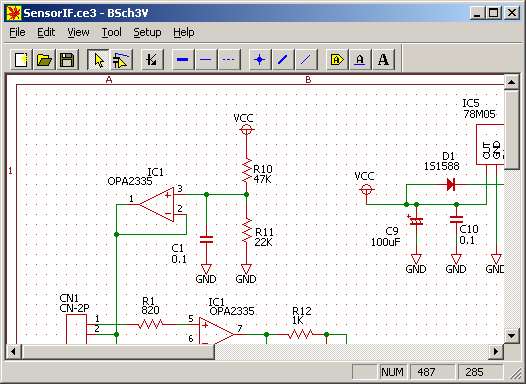

default color

Procedure

1. Click [setup] in menu ->[color], and the color setup dialog will open.
2. Choose the item to change colors from the listbox on the left and click the [change] button.
3. Choose new color and click [OK].
4. Click the [OK] button of the color setup dialog.. It is completed.

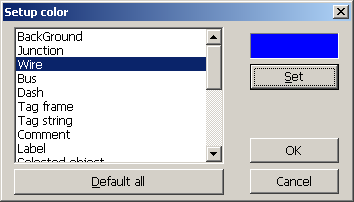

the color setup dialog (just changed the wire color)

Changing the wire color effects on the screen.

Changing colors effects on colors of printout except background color.
The background color of print is always white.
